Security camera installation: wiring and power in Essex, Morris and Union County, NJ

HomeGuide puts professional installation at $125 to $450 per camera including labor, $500 to $1,600 for a 4-camera home system and $1,000 to $2,500 for an 8-camera system. Fixr puts the national average at $600, with most jobs between $400 and $800. These are published ranges read October 29, 2026, not MDL prices. A new outdoor outlet or a long cable run is extra.

Not for a battery camera or a camera that plugs into an outlet you already have. You do for the 120-volt work: a hardwired floodlight camera, a new outdoor outlet or a new circuit. New Jersey law says only a licensed electrical contractor holding a valid business permit may install, service, maintain or repair branch circuit wiring (N.J.S.A. 45:5A-55). Ring's own floodlight camera guide says to consult a licensed electrician if you cannot easily identify the wires in the junction box.

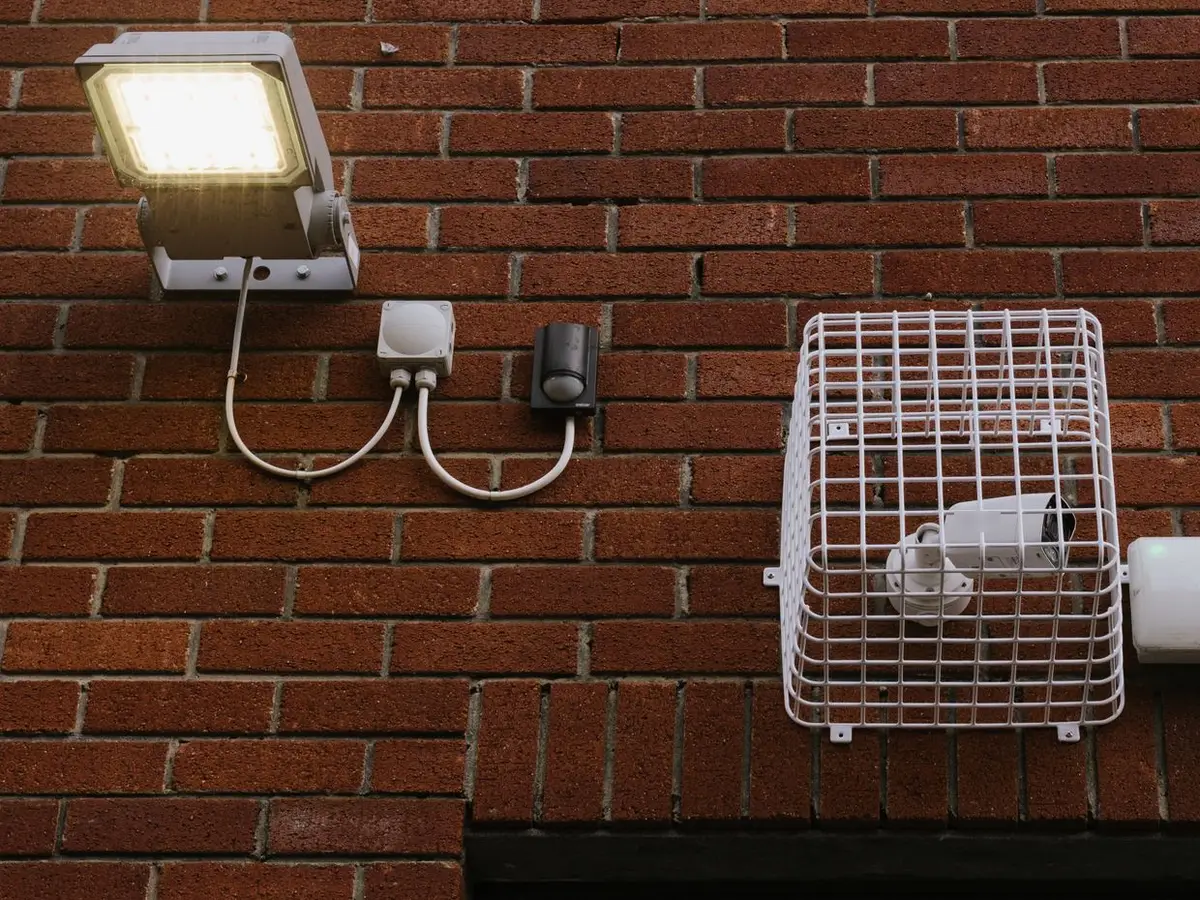

Yes, but the box and the cable come first. Ring says its Floodlight Cam Wired Plus and Pro must be installed on a 4-inch round, UL listed, weatherproof electrical box. Where there is no box, an electrician runs a new cable from a circuit that can carry the load and mounts the box. In a one- or two-family New Jersey home, adding five or fewer outlets on circuits that can carry the load is minor work under N.J.A.C. 5:23-2.17A: the town is told before work starts and the permit application follows within five business days.

Wired and wireless describe how the camera sends its video, not how it gets power. Fixr says both usually receive their power through a wired connection, and that wired cameras are generally more reliable and secure because they do not depend on an internet connection. HomeGuide puts a wired camera at $150 to $500 installed and a wireless one at $130 to $400. Published ranges, not MDL prices.

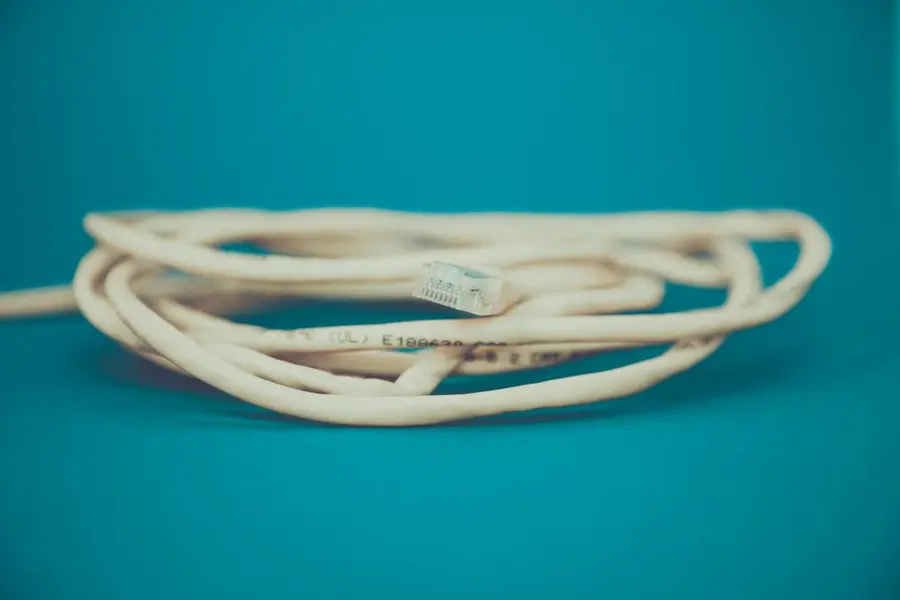

PoE (Power over Ethernet) sends power and video over one network cable, so the camera needs no outlet of its own. Under the IEEE standards, PoE+ (802.3at) supplies up to 30 watts at the source and 802.3bt up to 90 to 100 watts, and copper Ethernet reaches 100 meters, or 328 feet (Perle technical note). Fixr lists PoE cameras at $100 to $180 each installed; HomeGuide lists cat 5 or cat 6 runs at $200 to $500 for 100 feet to four cameras.

Indoors, somewhere dry, with an outlet, and within 328 feet of cable of every camera it powers. Security.org says modern network video recorders often support up to 16 cameras. A recorder that also powers PoE cameras puts every camera on that one outlet, so it is worth knowing which circuit it is on before the cable runs are planned.

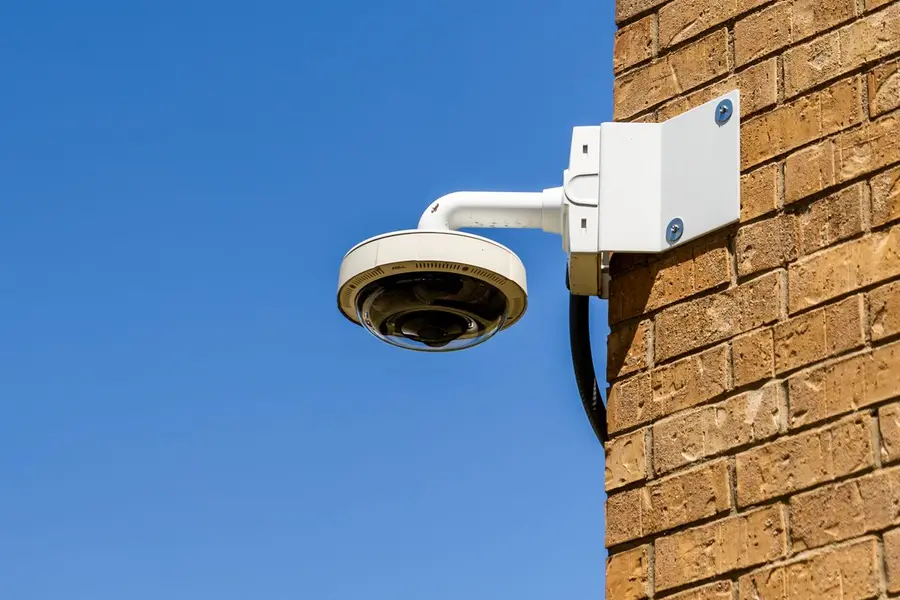

Security.org recommends 8 to 10 feet off the ground, pointed away from the sun to avoid glare, and in corners for the widest view. Height also decides where the box or cable has to come out of the wall, so settle it before any wiring is run.

The camera system itself usually does not in a home. N.J.A.C. 5:23-2.7 lists the installation of a burglar alarm, security system or doorbell in one- and two-family dwellings as ordinary electrical maintenance, which needs no permit. In other buildings it is minor work under N.J.A.C. 5:23-2.17A. New outlets, boxes or circuits for the cameras are separate electrical work: five or fewer outlets on adequate circuits in a one- or two-family home is minor work. Your town's construction office decides edge cases.

Yes. The National Electrical Code (210.8(A)(3)) requires GFCI protection for a home's outdoor receptacles, and 406.9(B)(1) requires 15- and 20-amp receptacles in wet locations to sit in an enclosure that is weatherproof whether or not a plug is in it, the in-use or bubble cover. The receptacle must also be a listed weather-resistant type. New Jersey enforces the 2023 National Electrical Code as its electrical subcode.

This page covers the electrical side of a camera job: the box, the outdoor outlet, the circuit and the cable route. Call 973.809.2339 with the camera you have or plan to buy, where it goes and where the recorder or router sits, and ask whether MDL handles your whole job or only the wiring and power.

Call or use the form with the address, the camera locations and where the recorder will sit. In New Jersey, a security system in a building other than a one- or two-family home is minor work under N.J.A.C. 5:23-2.17A, so the town is notified before work starts. For other business electrical work, see MDL's commercial electrical service page.
